Adding (or Inserting) Subheader Rows into a Gridview

By | April 20, 2008

Ever come across a situation where you needed to manually add (or insert) rows to a Gridview, but weren’t quite sure how to do it? A few weeks ago I came across this exact problem, where I needed to create sub headers based on the category for each row. Here’s how I did it.

So here’s the problem that I’m trying to solve. As you can see in the first image, I have a table of restaurants with the second column containing the category that the restaurant falls under (Fast Food, Italian, Pizza, Japanese, ….).

Gridview - Before image

This second image contains the exact same, unmodified listing of restaurants. The difference being that the restaurants are grouped under a Restaurant Category sub heading.
Gridview - After image

When I first tried to solve this problem, I thought that it would be pretty easy. The Gridview.Rows must have an Add() (or Insert()) method that I could call and pass in a GridviewRow object, right?

Wrong. Unfortunately to my surprise, the Gridview doesn’t support this ability.

After a bit of trial and error, and some Googling, I came up with a somewhat simple way to accomplish this problem, and I’m going to show you how.

So let’s begin. First off, we’ll need a DataSet of some data to display in the Gridview. This can be anything you’d like, as long as there is some sort of category field. For me, I manually created a DataSet of restaurants which includes a “category” field. This can be named anything you’d like.

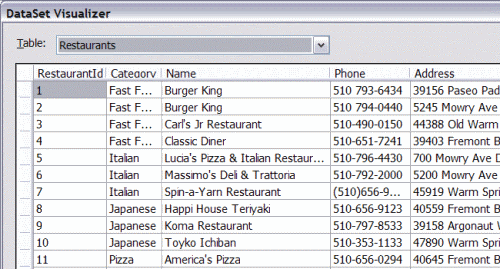

Below is a partial screenshot of my DataSet.
DataSet of Restaurants

Next, we’ll need a Gridview. Here is what I have on my page. Nothing too fancy, just a regular Gridview with a few columns and some simple styling.

<h3>Restaurant Listing</h3>
<asp:gridview id="gdvRestaurants" autogeneratecolumns="false"
              emptydatatext="No Restaurants were found."
              onrowdatabound="gdvRowDatabound" cellpadding="5"
              width="860" runat="server">
    <headerstyle backcolor="#507CD1" forecolor="white" />
    <rowstyle font-size="Small" />
    <alternatingrowstyle backcolor="#DCE4F9" />
    <columns>
        <asp:boundfield datafield="RestaurantId" headertext="Id" />
        <asp:boundfield datafield="Category" headertext="Category" />
        <asp:boundfield datafield="Name" headertext="Name" />
        <asp:boundfield datafield="Phone" headertext="Phone" />
        <asp:boundfield datafield="Address" headertext="Address" />
        <asp:boundfield datafield="Zip" headertext="Zip" />
    </columns>
</asp:gridview>


Pretty harmless. If you’re confused about anything in the above code, let me briefly explain. AutoGenerateColumns has been set to false because I want to add my own columns to display. I’ve also added a EmptyDataText just in case there’s nothing to display.

Next I’ve added a OnRowDatabound attribute and set it to gdvRowDataBound, which is the name of the method that we will create shortly.

After that, there’s some simple styling, such as cellpadding, forecolor, backcolor, width and font-size. These should all be pretty self explanatory.

Then I’ve added several columns to be displayed, and this is why I set AutoGenerateColumns to false.

Since we already specified the method to be called when the OnRowDatabound event is raised, we’ll need to add that event to our code behind/beside page (*.aspx.cs for C# or *.aspx.vb for Visual basic).

protected void gdvRowDatabound(object sender, GridViewRowEventArgs e)
{
}

Unlike MTV’s show “Cribs”, this is were the magic will happen, and not in the bedroom. Okay, that was bad, but I tried.

Still following? Good.

What good is a Gridview without data? We’ll need to some how give our Gridview data. This can be done anyway that you prefer, whether it be through a DataSource such as a ObjectDataSource, SqlDataSource or AccessDataSource. Or you can call a method from your code behind/beside.

For this example, since I didn’t have any data to use, I manually created a DataSet inside of a method, and called this method in the Page_Load().

protected void Page_Load(object sender, EventArgs e)
{
    if (!Page.IsPostBack)
    {
        // GetRestaurants() returns a DataSet of Restaurants.
        this.gdvRestaurants.DataSource = GetRestaurants();
        this.gdvRestaurants.DataBind();
    }
}

Pretty simple. All that I’m doing is checking if a PostBack caused the Page_Load(), and if not then load the Gridview with the data from the GetRestaurants() method. If it is a PostBack(), then the data will be kept in the viewstate, so we don’t need to fetch it.

If you run your project, you should get something similar to the first image above.

Now onto the “magic” that I spoke of.

Above the Page_Load(), add the following line.

// Used to store the last Category Name between each RowDataBound
private string tmpCategoryName = "";

We will use this variable to check whether the current row’s category is the same as the previous row’s category. If it’s not the same, then we will need to create the sub header row. If it is the same as the previous row, then we can skip creating the sub header.

If we were to declare this variable within the OnRowDatabound, it would always be start off being empty, and therefore we wouldn’t be able to compare it’s value to the current row’s value.

Now to that OnRowDatabound that I keep speaking of.

First, we’ll need to check to see if the current row is a DataRow, and not something else like a HeaderRow. If it is a DataRow, then we will continue doing our stuff to create the sub header row.

To check if it’s a DataRow, add the following to your OnRowDatabound() method.

// If the current row is a DataRow (and not a Header or Footer row), then do stuff.
if (e.Row.RowType == DataControlRowType.DataRow)
{
}

Inside of that, we will need to retrieve the value for the category field of the current row. Do to this we will need to cast the current row as a DataRowView, and then compare it’s “category” field to the value in the tmpCategoryName variable. If the two value are not the same, then we will need to set the value of tmpCategoryName to the new value.

// If the current row is a DataRow (and not a Header or Footer row), then do stuff.
if (e.Row.RowType == DataControlRowType.DataRow)
{
    DataRowView drv = (DataRowView)e.Row.DataItem;
    if (tmpCategoryName != drv["Category"].ToString())
    {
        tmpCategoryName = drv["Category"].ToString();
    }
}

As I mentioned earlier, the GridView doesn’t have a means of adding a row to it. So what we will do is create a reference to the current row’s Parent, which is a Table object, and happens to be the GridView itself. Once we do that, we will be safe and check to make sure that the reference isn’t null.

// Get a reference to the current row's Parent, which is the Gridview (which happens to be a table)
Table tbl = e.Row.Parent as Table;
if (tbl != null)
{
}

Now we can create the sub header row, and add it to the table (GridView). To do this we will need to create a GridViewRow object which will be the sub header row, and we will need to create a TableCell to place the category name into.

I’ve also applied some styling such as font-weight, background-color and the font color to the cell.

At the end, I’ll add the category name, which is wrapped in a span tag, into the TableCell, and then add the TableCell to the GridViewRow, and then add the GridViewRow to the table.

if (tbl != null)
{
    GridViewRow row = new GridViewRow(-1, -1, DataControlRowType.DataRow, DataControlRowState.Normal);
    TableCell cell = new TableCell();

    // Span the row across all of the columns in the Gridview
    cell.ColumnSpan = this.gdvRestaurants.Columns.Count;

    cell.Width = Unit.Percentage(100);
    cell.Style.Add("font-weight", "bold");
    cell.Style.Add("background-color", "#c0c0c0");
    cell.Style.Add("color", "white");

    HtmlGenericControl span = new HtmlGenericControl("span");
    span.InnerHtml = tmpCategoryName;

    cell.Controls.Add(span);
    row.Cells.Add(cell);

    tbl.Rows.AddAt(tbl.Rows.Count - 1, row);
}

Now if you were to run the project again, you should have something that looks like the following.

Gridview - After image

And there we have it.

Just because I’m a nice guy, I’ve decided to include the code as a zip file which can be downloaded here.
